When installing a Wine Guardian ducted or ducted split system, one of the most critical components for optimal performance is a properly designed duct layout. Poor duct planning can lead to airflow imbalances, reduced cooling capacity, hot spots in the cellar, and even equipment failure.
The Ductwork Calculator from Wine Guardian helps you design an efficient duct system—based on cellar size, distance, number of bends, and airflow requirements—so your wine cellar stays perfectly climate-controlled year-round.
Why Duct Design Matters for Wine Cellar Cooling

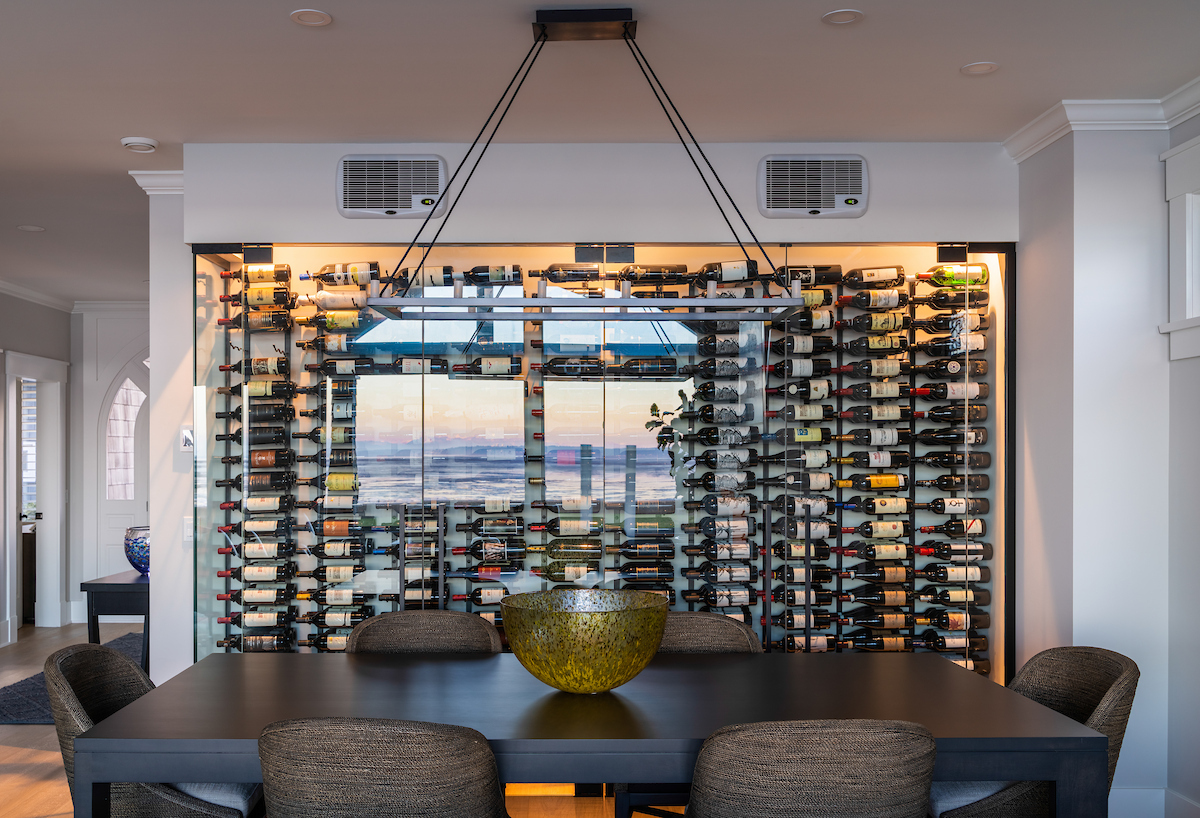

Wine Guardian units are known for their flexibility in ducted configurations—whether the system is fully ducted or only the evaporator is connected through ducts. However, that flexibility must be matched with precise duct design to ensure:
- Proper air distribution
- Balanced airflow (supply and return)
- Quiet operation
- Minimal static pressure losses
- Maximum system efficiency
Incorrect duct sizing or excessive duct length can cause restricted airflow, increased energy use, and unstable temperature and humidity inside the cellar.
What the Calculator Measures
Our calculator is based on HVAC engineering principles adapted for wine cellar environments.
It helps you determine:
- Recommended duct diameter based on CFM (cubic feet per minute)
- Maximum duct length to avoid excessive static pressure
- Total Equivalent Length (TEL) accounting for elbows, transitions, and fittings
- Supply and return duct balancing
- Compatibility with Wine Guardian duct collar sizes and accessories
Duct Sizing Reference Guide (Wine Guardian Standards)
| Model | Airflow (CFM) | Recommended Duct Size (Model) | Max TEL (ft) | Notes |
|---|---|---|---|---|
| TTW018 / DP25 | 140-160 | 8" supply / 8" return | 50-75 | Horizontal only |
| DP50 / D050 | 180-250 | 10" supply / 10" return | 75-100 | Add insulation to reduce noise |
| D088 / DP88 | 250-400 | 10" supply / 10" return | 100+ | May require dual returns |
| D200 / DP200 | 400-700 | 12" supply / 12" return | Custom design | Use with balancing dampers |
How It Works: Step-by-Step Calculator Inputs
When you use the Wine Guardian Ductwork Calculator, you’ll be asked to provide:
- Cellar Volume and System Model
- Location of Cooling Unit (distance from cellar)
- Number of supply/return ducts
- Length of duct runs (feet)
- Number and type of fittings (elbows, Y-branches, transitions, etc.)
- Insulation type and air velocity preferences (for noise management)
Based on your inputs, the calculator will generate:
- Required duct diameters
- Maximum duct length thresholds
- Pressure loss estimates
- Recommendations for silencers or balancing accessories
Important Installation Tips
- Use rigid or semi-rigid insulated ducting for minimal pressure drop.
- Use flexible insulated ducting if the runs are straight and do not risk compression for quiet installations.
- Minimize sharp turns and unnecessary fittings.
- Always balance supply and return airflow to prevent pressure build-up.
- Insulate ducts to reduce condensation and noise.
- Avoid placing ducts near heat sources or poorly ventilated spaces.
Need more technical help? Our team can review your duct design and recommend layout optimizations. Contact us today!
Compatible Accessories (Wine Guardian)
To maximize ducted system efficiency, Wine Guardian offers:
- Duct collars & plenums
- Remote sensors for airflow control
- Inline silencers for ultra-quiet operation
- Insulated flex duct kits
- Balancing dampers and airflow registers
These accessories are fully compatible with Wine Guardian ducted and split ducted systems, and we carry them all.
Why Use Wine Cooling Pro?
At Wine Cooling Pro, we don’t just sell systems—we design complete climate solutions.
Our team:
- Understands the full engineering requirements of Wine Guardian ducted installs
- Offers pre-installation consultation and duct layout reviews
- Helps you avoid underperformance and excess noise
- Provides all parts and accessories in one place
- Supports both contractors and homeowners
Need Help Choosing the Right System?
Don’t guess when it comes to duct layout—use the Wine Guardian Ductwork Calculator to ensure your system runs efficiently and your wine stays perfectly. Contact us today for a custom duct design consultation.
